Exploring Stan’s Robot Shop:

Stan's Robot Shop is a versatile microservices application that takes you on a journey from Docker Compose deployment to integrating IAM OIDC with Amazon EKS clusters. Dive into the world of containerized applications, orchestration, and monitoring. Stan's Robot Shop is more than just a destination; it's a secure space to master NodeJS, Java, Python, Kubernetes, and monitoring tools like Instance. Use it as a starting point to enhance your skills in microservices, container orchestration, and monitoring in a straightforward manner.

Step 1: IAM User Creation in AWS

1. Log in to the AWS console using your credentials.

2. In the search bar, enter ‘IAM’ to access the IAM Dashboard.

3. Navigate to the ‘Users’ section and select ‘Create User’.

Enter a Name, Check the Desired Options, and Proceed to Next Step

Explore Direct Attachment of Policies: Leveraging AdministratorAccess for Educational Purposes

Click Next

Click on Create user

Select View User to Access User Details

Access Security Credentials

Now, within security credentials, navigate to Access keys and proceed to Create a new access key.

Choose CLI, Agree to Terms, and Proceed to Next

Download the .csv File and Click ‘Done’

Step2: Create EC2 Instance

Provisioning an EC2 Instance on AWS: A Step-by-Step Guide

1. Sign in to AWS Console:
Log in to your AWS Management Console.

2. Navigate to EC2 Dashboard:
Access the EC2 Dashboard by selecting “Services” in the top menu.
Choose “EC2” under the Compute section.

3. Launch Instance:
Click on the “Launch Instance” button to initiate the creation process.

4. Choose an Amazon Machine Image (AMI):
Select a suitable AMI (e.g., Ubuntu) for your instance.

5. Choose an Instance Type:
In the “Choose Instance Type” step, opt for t2.medium.
Proceed by clicking “Next: Configure Instance Details.”

  1. Configure Instance Details:
    Set “Number of Instances” to 1 (adjust if necessary).
    Configure additional settings such as network, subnets, IAM role, etc.
    For “Storage,” add a new volume and set the size to 8GB (or modify existing storage to 16GB).
    Click “Next: Add Tags” when configuration is complete.

7. Add Tags (Optional):
Optionally, add tags to organize your instance.

8. Configure Security Group:
Choose an existing security group or create a new one.
Ensure the security group has necessary inbound/outbound rules for required access.

9. Review and Launch:
Review the configuration details to ensure they are as desired.

10. Select Key Pair:
Choose “Choose an existing key pair” from the dropdown.
Acknowledge access to the selected private key file.

11. Launch Instances:
Click “Launch Instances” to create the EC2 instance.

12. Access the EC2 Instance:
Once the instance is launched, access it using the selected key pair and the instance’s public IP or DNS.

Optimize Security for Your EC2 Instance: Implement Essential Permissions and Best Practices in Configuring Security Groups and Key Pairs.

Step3: Connect to Instance and Install Required Packages

Eksctl

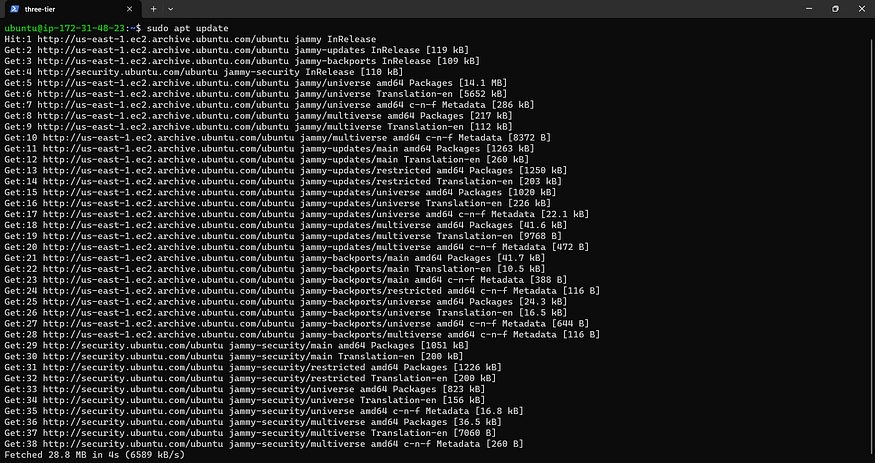

sudo apt update


curl --silent --location "https://github.com/weaveworks/eksctl/releases/latest/download/eksctl_$(uname -s)_amd64.tar.gz" | tar xz -C /tmp
sudo mv /tmp/eksctl /usr/local/bin
eksctl version

Kubectl

curl -O https://s3.us-west-2.amazonaws.com/amazon-eks/1.28.3/2023-11-14/bin/linux/amd64/kubectl
sudo chmod +x ./kubectl
mkdir -p $HOME/bin && cp ./kubectl $HOME/bin/kubectl && export PATH=$HOME/bin:$PATH
kubectl version --client

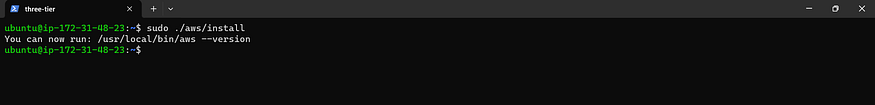

Aws CLI

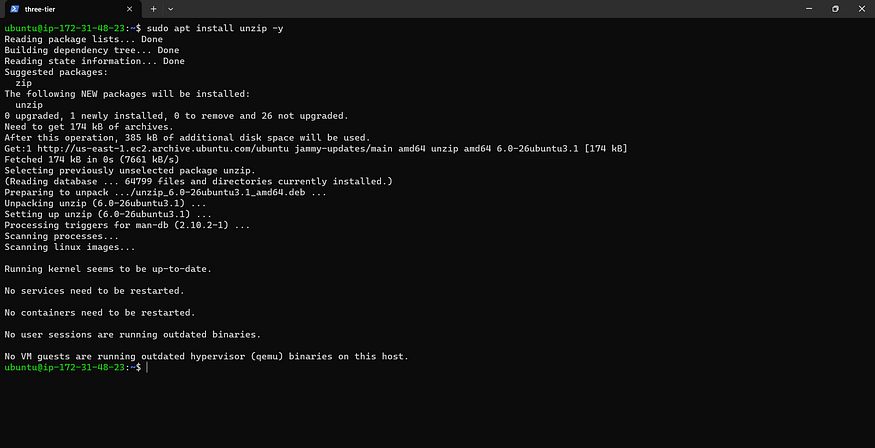

sudo apt install unzip -y

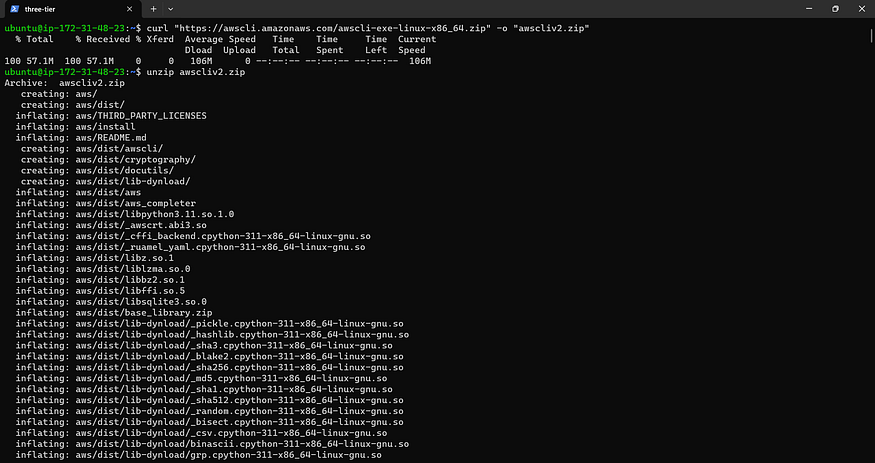

curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
unzip awscliv2.zip


sudo ./aws/install


aws --version

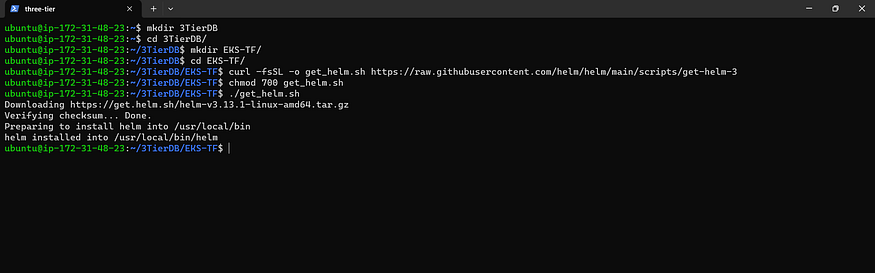

Helm

curl -fsSL -o get_helm.sh https://raw.githubusercontent.com/helm/helm/main/scripts/get-helm-3
chmod 700 get_helm.sh
./get_helm.sh

Step4: EKS Setup

Configure AWS Settings for us-east-1 Region

aws configure

Clone the GitHub Repository: A Step-by-Step Guide

git clone https://github.com/mudit097/three-tier-architecture-demo.git
cd 3TierDB

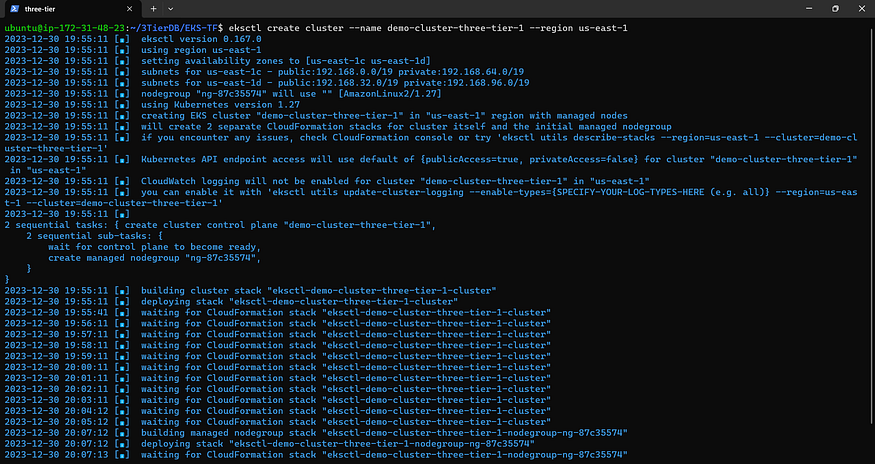

Establish Cluster

eksctl create cluster --name demo-cluster-three-tier-1 --region us-east-1

Certainly! Here’s a revised version of the title:

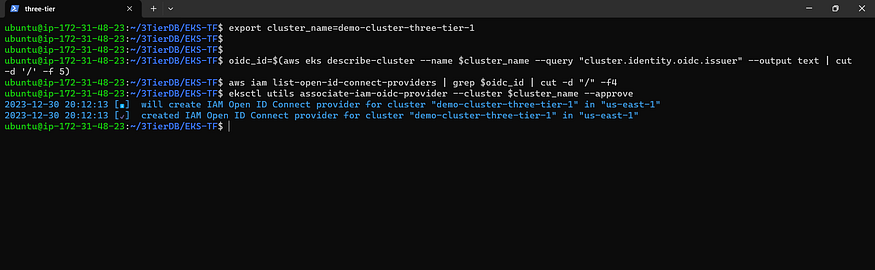

Setting Up Commands for Configuring IAM OIDC Provider

USE CLUSTER NAME demo-cluster-three-tier-1

export cluster_name=<CLUSTER-NAME>

Utilize 'export cluster_name=' in the command-line interface to create a designated storage variable. This streamlines the storage and retrieval of specific values, eliminating repetitive typing. The assigned 'cluster_name' facilitates efficient recall and utilization in various commands or programs, enhancing overall productivity.

oidc_id=$(aws eks describe-cluster --name $cluster_name --query "cluster.identity.oidc.issuer" --output text | cut -d '/' -f 5)

Extracting Specific Information from an Amazon EKS Cluster Using AWS CLI

Check if there is an IAM OIDC provider configured already

aws iam list-open-id-connect-providers | grep $oidc_id | cut -d "/" -f4

Using AWS CLI to Retrieve Information: Listing OpenID Connect (OIDC) Providers in AWS IAM

eksctl utils associate-iam-oidc-provider --cluster $cluster_name --approve

Associating IAM OIDC Provider with Amazon EKS Cluster Using EKSCTL Command

Setting Up ALB Add-On:

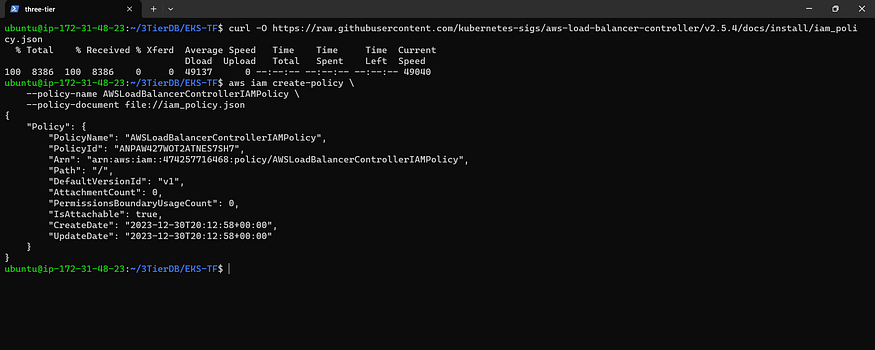

Downloading IAM Policy

Create IAM Policy

 -O https://raw.githubusercontent.com/kubernetes-sigs/aws-load-balancer-controller/v2.5.4/docs/install/iam_policy.json
aws iam create-policy \
    --policy-name AWSLoadBalancerControllerIAMPolicy \
    --policy-document file://iam_policy.json

Create IAM Role with Cluster Name and AWS Account ID

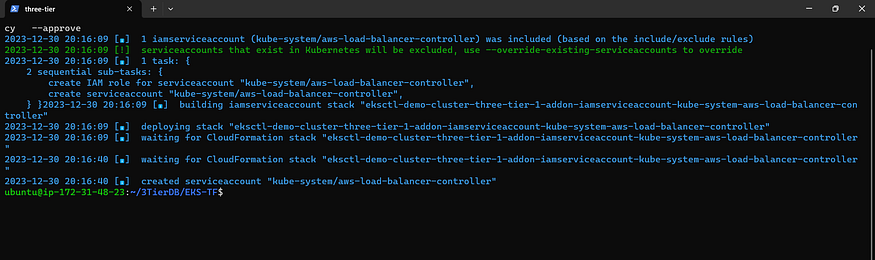

eksctl create iamserviceaccount \
  --cluster=<your-cluster-name> \
  --namespace=kube-system \
  --name=aws-load-balancer-controller \
  --role-name AmazonEKSLoadBalancerControllerRole \
  --attach-policy-arn=arn:aws:iam::<your-aws-account-id>:policy/AWSLoadBalancerControllerIAMPolicy \
  --approve

Obtaining AWS Account ID: Navigate to the AWS Console, click on your profile name on the right side, and copy the account ID.

Implement ALB Controller

Add Helm Repository for Deployment

helm repo add eks https://aws.github.io/eks-charts

Repository Refresh: Latest Updates

helm repo update eks

Update the VPC_ID in the following command after retrieving the VPC ID from EKS

helm install aws-load-balancer-controller eks/aws-load-balancer-controller -n kube-system --set clusterName=demo-cluster-three-tier-1 --set serviceAccount.create=false --set serviceAccount.name=aws-load-balancer-controller --set region=us-east-1 --set vpcId=<vpc-id>

Ensure Operational Deployment Success

kubectl get deployment -n kube-system aws-load-balancer-controller

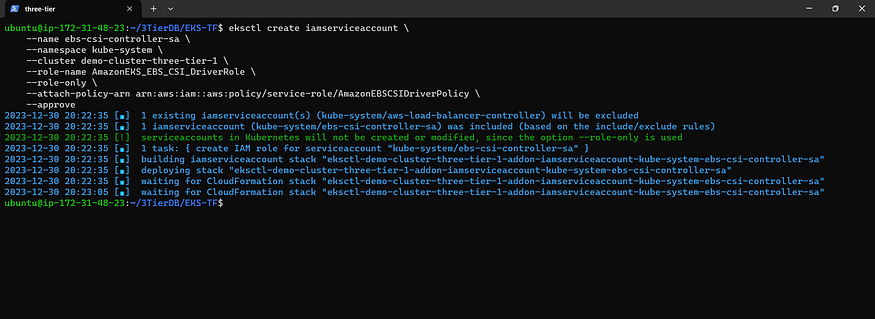

EBS CSI Plugin Setup and Configuration

The Amazon EBS CSI Plugin Requires IAM Permissions for AWS API Calls on Behalf of Your Cluster.

Create an IAM Role and Attach a Policy for Cluster: [Your Cluster Name]. AWS provides an AWS Managed Policy, or you can craft a Custom Policy. Use the following command to create an IAM role and attach the AWS Managed Policy; ensure to replace ‘my-cluster’ with your cluster’s name. This command deploys an AWS CloudFormation stack, establishing an IAM role and linking the IAM policy to it.

eksctl create iamserviceaccount \
    --name ebs-csi-controller-sa \
    --namespace kube-system \
    --cluster <YOUR-CLUSTER-NAME> \
    --role-name AmazonEKS_EBS_CSI_DriverRole \
    --role-only \
    --attach-policy-arn arn:aws:iam::aws:policy/service-role/AmazonEBSCSIDriverPolicy \
    --approve

Execute the following command, replacing ‘YOUR_CLUSTER_NAME’ with the actual name of your cluster and ‘YOUR_ACCOUNT_ID’ with your account ID.

eksctl create addon --name aws-ebs-csi-driver --cluster <YOUR-CLUSTER-NAME> --service-account-role-arn arn:aws:iam::<AWS-ACCOUNT-ID>:role/AmazonEKS_EBS_CSI_DriverRole --force

Navigate into the Helm and Establish a New Namespace

cd helm
kubectl create ns robot-shop

Now

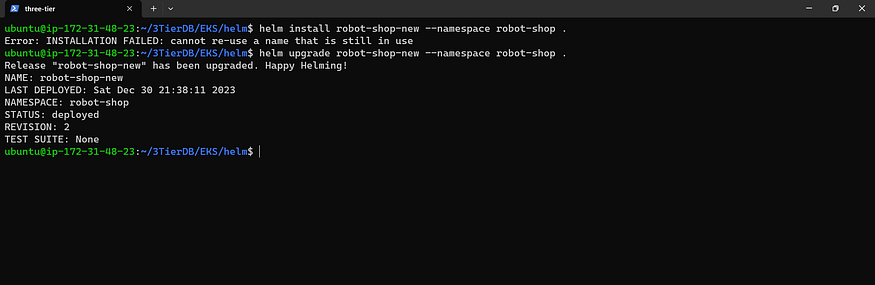

helm install robot-shop --namespace robot-shop .

Time for Pod Check

kubectl get pods -n robot-shop

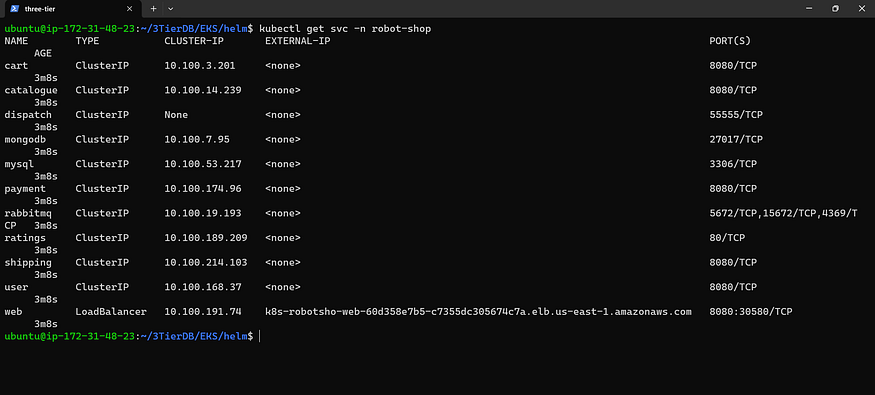

Check service

kubectl get svc -n robot-shop

Now Accepting Ingress Applications

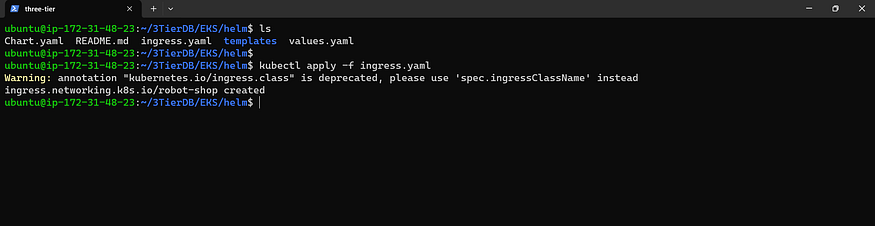

kubectl apply -f ingress.yaml

Navigate to AWS Console, Locate EC2, and Access Load Balancers — Copy DNS

k8s-robotsho-robotsho-55094ff83e-535495866.us-east-1.elb.amazonaws.com

Open a fresh tab and insert

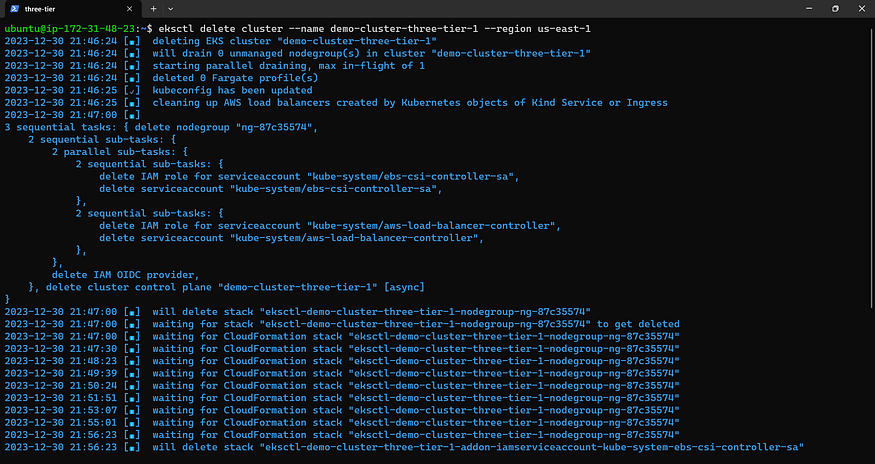

Step5: DELETE CLUSTER

Input This Command Immediately

eksctl delete cluster --name demo-cluster-three-tier-1 --region us-east-1

This guide aims to give you useful tips and practical advice to help you become more skilled in working with containerized applications and Kubernetes.

Thank you for taking the time to read this guide.
